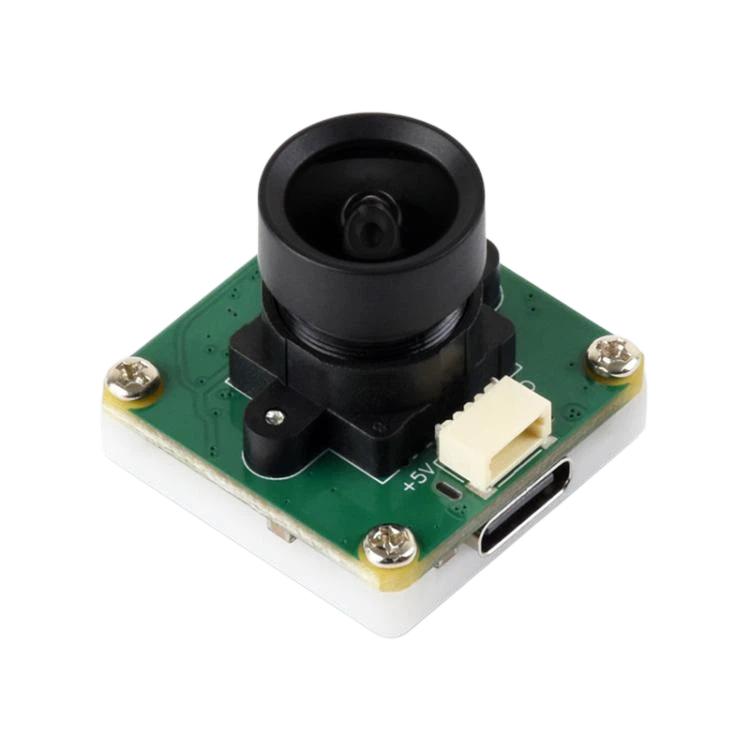

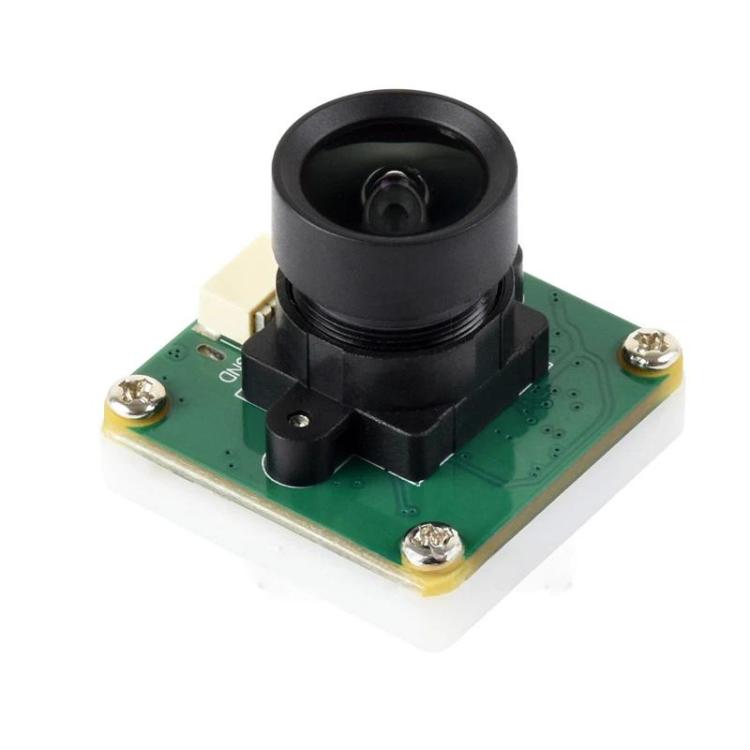

Waveshare OV4689 4MP USB Camera 92-Degree FOV, Supports Type-C Port And SH1.0 4PIN Header, 34767

Specifications:
1. Resolution: 4 Megapixels
2. Image Sensor: OV4689

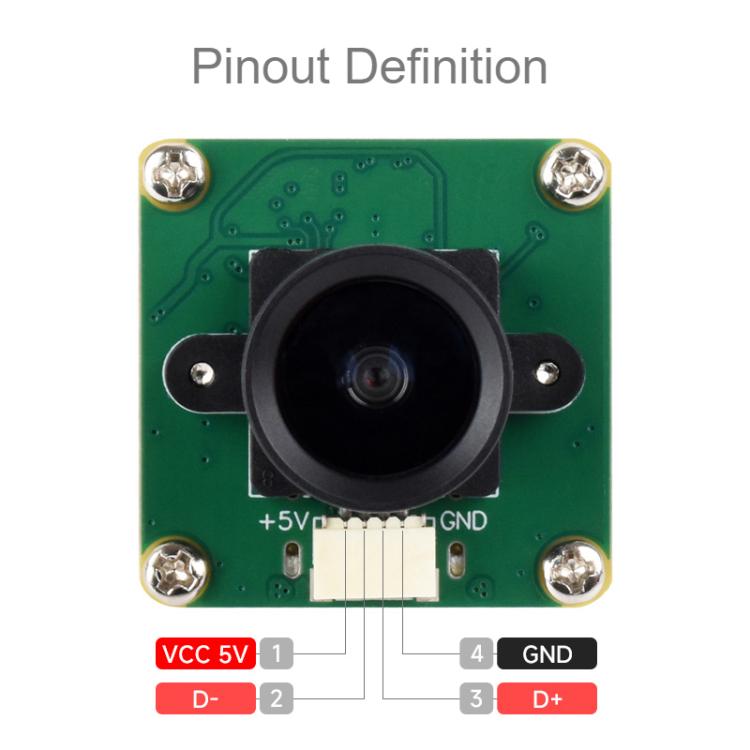

3. Interface Type: USB 2.0 Type-C / SH1.0 4-pin connector
4. Lens Mount: M12
5. Operating Voltage: 5V +/-5%
6. Operating Temperature: -10 ~ 60 degrees Celsius

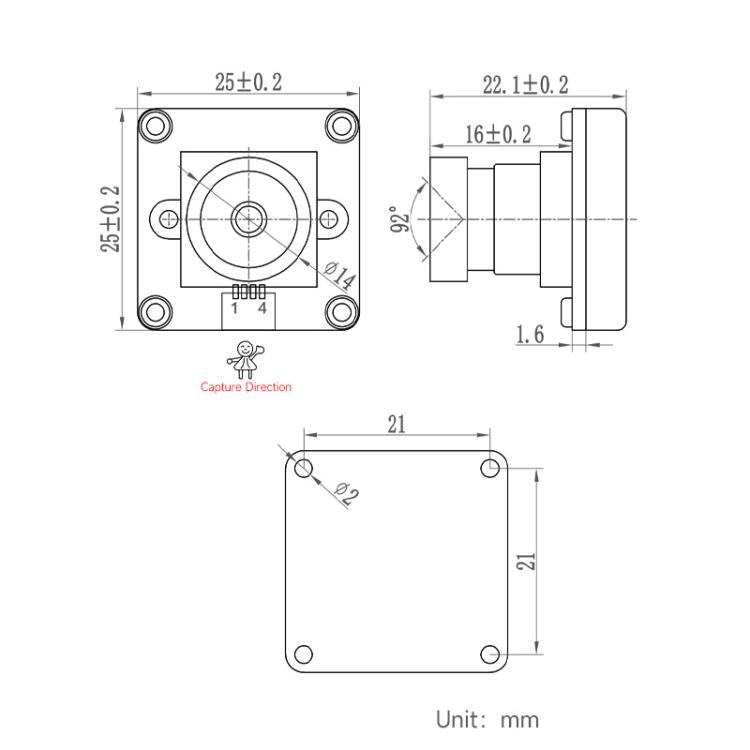

7. Module Dimensions: 25 × 25 mm

Camera:
--Sensor Size: 1/3 inch
--Aperture (F): 2.7
--Focal Length (EFL): 2.88mm
--Field of View (FOV): 92-degree
--Distortion: Less than -0.2%
--Focus Type: Fixed focus

Image:
1. Supported Formats: MJPG, YUY2
2. Still Image Resolution: 2688 × 1520
3. Video Recording Support:
MJPG:
30 FPS at 2688 × 1520
30 FPS at 2560 × 1440
60 FPS at 1920 × 1080
60 FPS at 1280 × 720
60 FPS at 640 × 480
YUY2:
2 FPS at 2688 × 1520
2 FPS at 2560 × 1440
5 FPS at 1920 × 1080
10 FPS at 1280 × 720
30 FPS at 640 × 480
