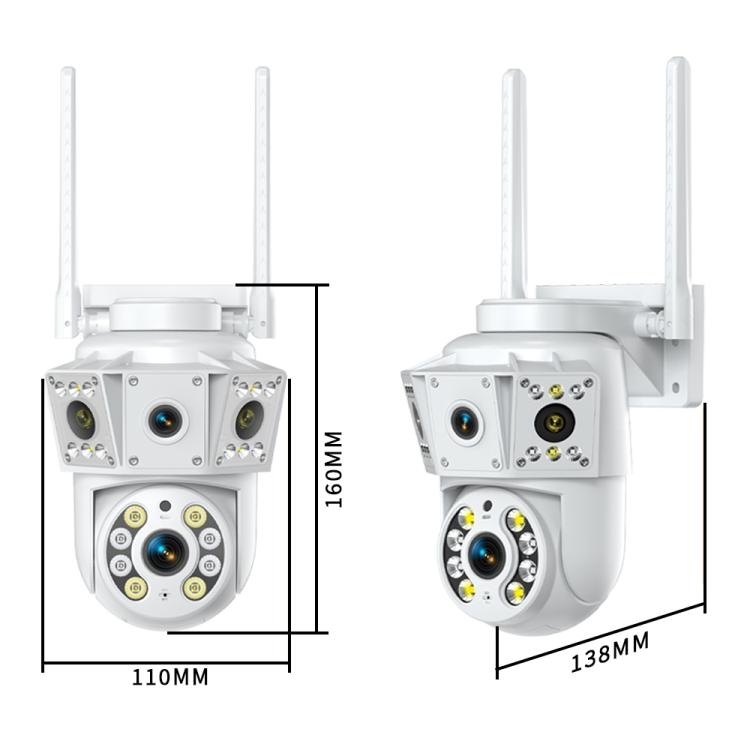

K30 1080P 3-screen Surveillance Camera, K30

System:
1. Main Control Chip Processor: T23 Pure Hardware Compression
2. Image Sensor: High-performance CMOS sensor
3. Operating System: Embedded LINUX operating system
4. Image Encoding Format: Smart H.265X
5. APP: Xiaoying Kankan (supports Android and iOS)

Video:
1. Effective Video Pixels: 2MP
2. Resolution: 1920x1080 12fps
3. Minimum Illumination: 0.01LUX/F1.2
4. Lens: 3.6mm (standard)
5. Viewing Angle: 92 degrees
6. Video Flip: Up/Down Flip / Left/Right Flip

Night Vision:
1. Lighting Control Mode: Dual-light night vision
2. Number of Fill Lights: 10+12

PTZ:
1. PTZ Control: Rotation Angle Horizontal: 355 degrees, Vertical: 90 degrees
2. PTZ Flip: Up/Down Flip / Left/Right Flip

Audio:
1. Encoding Standard: G.711
2. Audio Pickup: Supported
3. Speaker: Supported

Recording Management:
1. Recording File Size: Approximately 6G/day
2. Recording Methods: Manual recording, motion detection recording, scheduled recording, alarm recording
3. Recording Storage: TF card/Cloud
4. Storage: Cloud storage + TF local recording (128GB MAX)
5. Remote Playback: Supported
6. Screenshot Function: Supported

Network Functions:
1. Wireless Network: 2.4G WIFI 802.11b/g/n
2. Network Configuration: WiFi Smartlink network configuration, AP hotspot addition, QR code scanning
3. Network Protocol: TCP/IP, ONVIF, RTSP

Power Supply:
1. Power: DC 5V
2. Power Interface: USB

Environment:
1. Applicable Places: Homes, shops, supermarkets, factories, etc.
2. Installation Method: Wall mounting, ceiling mounting, flat placement
3. Operating temperature: -20~55 degrees Celsius
4. Operating humidity: 10%-90%
